Solid Edge Tips & Tricks – #24 Synchronous Symmetrical Parts Sequence

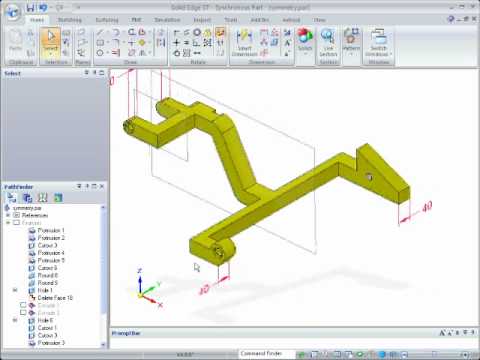

Changing the length, width or height of non symmetrical part about its centre is tricky, usually requiring complex parametric relationships, here’s an example that you’ll find useful when developing parts in Solid Edge with Synchronous Technology 2.
Solid Edge Tips and Tricks from the Experts can be seen weekly. These short videos illustrate how to better utilize features and functions of the Solid Edge CAD software, ultimately helping you do your job more efficiently.
Tags: 2D, 3D, CAD, MCAD, Solid Edge, Solid Edge with Synchronous Technology, Synchronous Technology, Tips & Tricks, Velocity Series
